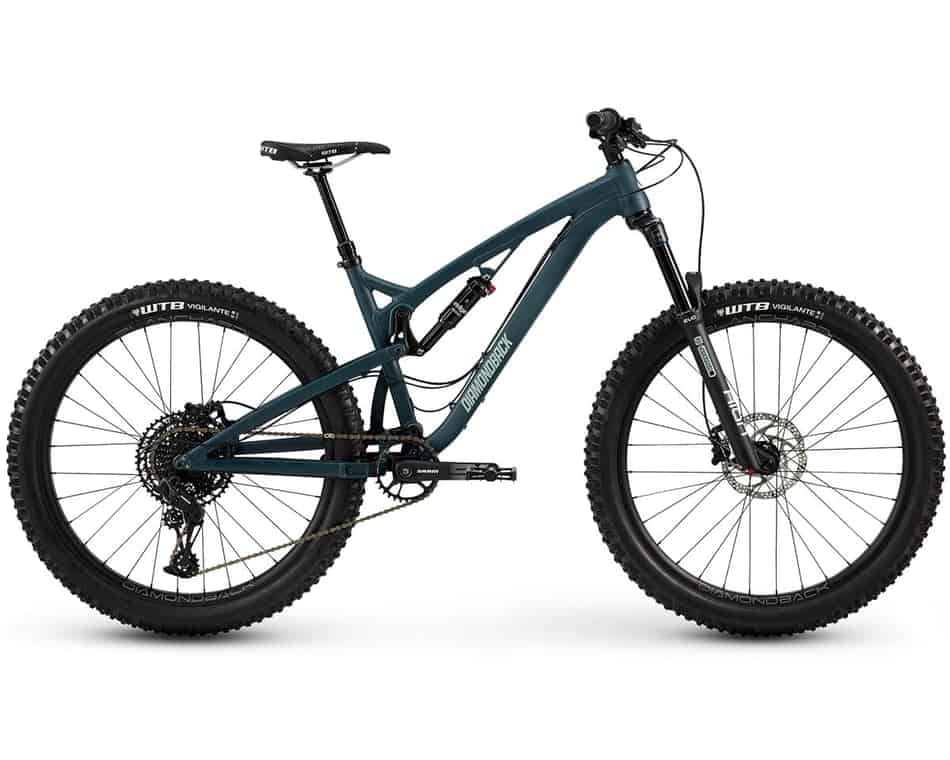

Diamondback Catch 1 Full Suspension

Description

The Diamondback Catch full suspension mountain bike utilizes a 27.5+ platform that boosts trail maneuverability and playfulness with the added traction and control that plus sized tires bring to the table. Slack, yet not too slack geometry numbers, establish control on rowdy descents without reducing the user control on tight twisty singletrack. Additionally, Diamondback rounded out the Catch build with a reliable 1 x 12 Speed drivetrain, adjustable suspension, and an internally routed dropper post, thus providing riders with modern amenities that not only increase performance, but also increase the riding experience.

Stefanov1c

Store: Performance Bicycle

Details

Comments (0)

27.5"+ wheels provide a playful platform that boosts stability and traction
Level Link Suspension platform provides a smooth yet progressive travel arc
130mm travel SR Suntour Aion Air fork w/ adjustable damper cartridge
130mm rear suspension travel hugs the ground for unrivaled traction
Internally routed dropper post with easy to use 1x remote
1 x 12 speed SRAM SX Eagle drivetrain
TRP hydraulic disc brakes provide consistent and controllable stopping power
Extras Included: Diamondback Tool Kit, Shock Pump, Tubeless Valves. Mud Guard, Spare Rear Derailleur Hanger, & Carbon Paste for assembly

Features

Frame: Hydroformed Aluminum Tubing w/ Level Link Suspension (27.5+") (130mm Travel) (12 x 148mm)
Rear Shock: Suntour Edge R (200 x 57mm)
Fork: SR Suntour Aion Air (130mm Travel) (15 x 110mm)
Headset: FSA Sealed Cartridge (No. 57) (Tapered)
Handlebar: Diamnodback Alloy (35mm) (15mm Rise) (760mm)
Stem: Diamondback 35 (35mm) (35mm Length)
Brake Levers: TRP Slate
Brakes: TRP Slate X2 (180/180mm)
Shifter: SRAM SX Eagle (12 Speed)
Front Derailleur: N/A
Rear Derailleur: SRAM SX Eagle (12 Speed)
Crank: SRAM SX (32T Direct Mount Chainring)
BB: SRAM Powerspline (118/73)
Cassette: SRAM PG1210 (11-50T) (12 Speed)
Chain: SRAM SX Eagle (12 Speed)
Pedals: Diamondback Aluminum Platform
Seat: WTB Koda Comp
Seatpost: Kindshock EXA Form 900i Dropper Post (31.6mm) (Internally Routed)
Rims: Diamondback Blanchard 38R (32H) (Tubeless Compatible)
Front Hub: Alloy Sealed Cartridge (15 x 110mm) (Disc)
Rear Hub: Alloy Sealed Cartridge (12 x 148mm) (Disc) (XD)
Spokes: Stainless (14g)
Tires: WTB Vigilante (27.5 x 2.8") (Wire Bead)
