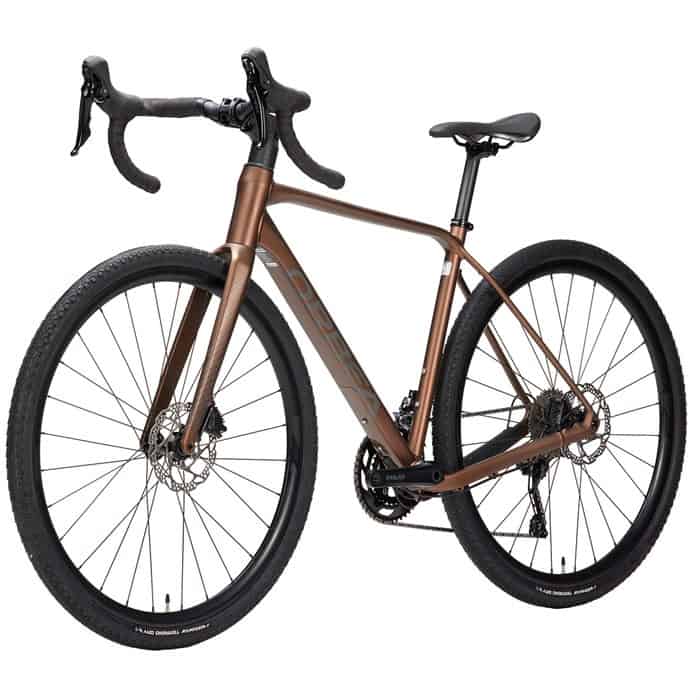

Orbea Terra H40 Complete Bike
The Orbea Terra H40 Complete Bike is a drop-bar ATV, the kind of bike we'd choose if we were told we're "going on a bike ride," but were given no other information. It has a lightweight aluminum frame, great for efficient power transfer and stiffness, with a carbon fork to take the sting out of rough gravel rides. Hydraulic brakes and a gravel-ready 2x10 drivetrain give you maximum control and the tools to tackle any hills -- up or down. Commute, gravel, or long ride in your future? This Terra H40 will be ready.
Orbea Terra Hydro Disc Aluminum Frame – With triple-butted aluminum tubes, hydroformed into a very solid structure, this frame is lightweight, durable, and efficient. It has two water bottle mounts, internal cable routing, and a 142mm rear end.
Orbea Terra OMP Carbon Fork – With a full carbon steerer, this fork takes the sting out of rougher surfaces while maintaining quick handling.
All Road Geometry – Slightly more upright than a traditional road race bike, this is designed to be at home on dirt and gravel. The angles lend themselves to cyclocross as well as all-day rides, striking a balance between precision and comfort.
Threaded Bottom Bracket
Internal Cable Routing
Shimano GRX 2x10 Speed – Balancing weight and efficiency for mixed-terrain riding, this GRX group is geared for all day rides across all surfaces. With tight steps across its wide gear range, you'll be able to maintain your pedaling rhythm as you experience crisp shifting performance.
Shimano GRX Hydraulic Disc – These flat mount hydraulic brakes provide great control and power in all weather and terrain conditions. They're easy to set up, maintain, and bleed.
Vittoria Terreno Dry Gravel 2.0 TNT Tires – The Terreno Dry bridges the gap between file treads, and traditional all-conditions treads. The key to this is the unique angled “fish scale” design, that allows the center tread to roll extremely fast, yet offer traction when loaded in cornering and braking. Add the transitional height mid and side tread, and the Terreno Dry transitions as smoothly as it rolls. From gravel grinding to medium conditions cross racing, the Terreno Dry offers consistent performance.
Orbea Ready GR – With 12mm thru-axles and Shimano hubs, these wheels are made to take a beating without being too cumbersome. Cyclocross or cross-country, these are up for anything.
Recommended Use: Commuting, Cyclocross, Gravel
Biking Type: Urban/Commuter
Bike Style: Cyclocross, Gravel, Road
Wheel Size: 700c
Gearing: 2 x 10
Handlebar Shape: Drop
Frame Material: Aluminum Alloy
Brake Type: Hydraulic Disc
Fork: Orbea Terra OMP Carbon Disc
Fork Material: Carbon
Shifters: Shimano ST-RX400
Front Derailleur: Shimano GRX RX400
Rear Derailleur: Shimano RD-RX400
Crankset: Shimano GRX RX600-10 | 30/46T
Bottom Bracket: 68mm Threaded
Cassette: Shimano Tiagra HG-500 10 Speed | 11-34T
Chain: KMC X10
Brake Levers: Shimano ST RX400
Brake Calipers: Shimano RX400 Hydraulic Disc
Headset: FSA Integrated Carbon Cup ACB Bearings
Handlebar: OC1 All Road | 80mm Reach | 125mm Drop | 12º Flare
Stem: OC1 | 6º Drop
Saddle: Selle Royal Seta RS
Seatpost: OC2 Carbon 27.2 | 20mm Offset
Wheelset: Orbea Ready GR
Hubs: Orbea Thru Axle | 12x142mm Rear / 12x100mm Front
Tires: Vittoria Terreno Dry Gravel G2.0 TNT | 700c x 38mm
